No tears over missed eyedrops

Lotad: best Pokémon. No contest.

tl;dr

Use the {eyedroppeR} package by Dan Oehm if you want to sample a colour from an image using R. You don’t need to use my hastily-created function.

Top of the drops

A colleague on Slack asked about ‘eyedropper’ tools; where you can click a point on an image and have its colour returned. Very handy.

I couldn’t recall seeing an eyedrop tool built with R. How hard could it be to make one?

I thought immediately of the locator() function from base R, which lets you click a plot and have its coordinates returned¹. So I went ahead and made a little demo function.

But I figured someone must have done this before, so I asked on Mastodon. And lol, of course: the {eyedroppeR} package by Dan Oehm already does this (and more).

Note

You may also enjoy Dan’s {traceR} package, which lets you interactively click points in the plot window to trace around an image, then use the resulting dot-to-dot in a new plot.

Eye, eye

So this is a good lesson about avoiding duplication and wasted effort. I’m glad I asked about it!

But I still had fun. For posterity, here’s the sketch I came up with:

eyedrop <- function(file, swatch = TRUE) {

  # Check file exists
  if (!file.exists(file)) stop("File doesn't exist.")

  # Check file extension
  file_ext <- tools::file_ext(file)
  if (!file_ext %in% c("png", "jpeg")) stop("File must be .png or .jpeg.")

  # Read from path
  if (file_ext == "png") img <- png::readPNG(file)
  if (file_ext == "jpeg") img <- jpeg::readJPEG(file)

  # Plot the image
  grDevices::dev.new()
  grid::grid.raster(img)
  main_dev <- grDevices::dev.cur()

  # Get the size of the plot window
  grid_size <- setNames(dev.size("cm"), c("x", "y"))

  message("Select points on the image to identify colours. Press <Esc> to quit.")

  # Keep allowing user to click points until they refuse
  repeat {

    clicked_point <- grid::grid.locator("cm")  # xy in cm

    if (is.null(clicked_point)) break  # exit if user is finished

    # Standardise xy as 0 to 1
    grid_coords <- unlist(clicked_point)
    grid_ratios <- grid_coords / grid_size

    # Find the 'pixel' coords given the image's resolution
    grid_dim <- setNames(dim(img)[1:2], c("y", "x"))[2:1]
    pixels <- round(grid_dim * grid_ratios)
    pixels["y"] <- grid_dim["y"] - pixels["y"]

    # Extract RGB for given pixel, convert to hex
    rgb_vals <- img[pixels["y"], pixels["x"], ]
    hex <- rgb(rgb_vals[1], rgb_vals[2], rgb_vals[3])

    # Open a window filled with the provided hex colour
    if (swatch) {
      dev.new(width = 2, height = 2)
      par(mar = c(rep(0, 4)))  # remove plot margins
      image(matrix(1), col = hex)
      grDevices::dev.set(main_dev)  # return focus to original plot window
    }

    message(hex)

  }

}

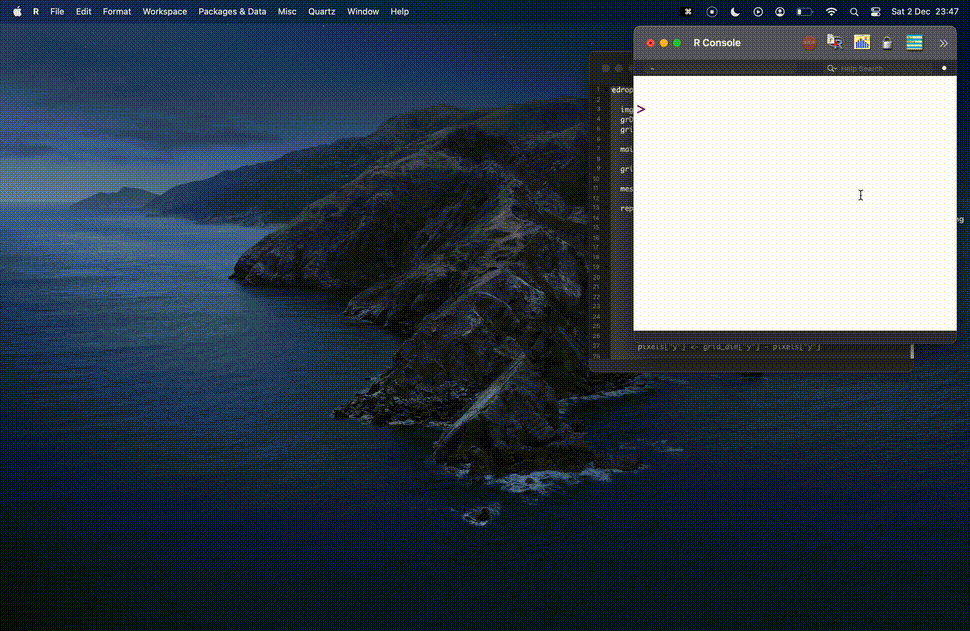

You can see an example of this in action in the gif at the top of this page.

Of course, this is a minimum viable product and has many deficiencies; it is not optimised in any way. I may even have misunderstood some concepts from {grid} graphics.

Also, importantly, there is some kind of issue with RStudio where grid units are converted incorrectly. Hence why the example shown at the top of this post uses R’s vanilla graphical use interface. Given that of people are using RStudio, that isn’t ideal.

To explain the basic steps of the function:

1. We get the plot window dimensions with dev.size() and coordinates for our clicked point with grid.locator(). We can use that to work out how far along each axis that our point is, as a percentage.
2. We can then check the dim()ensions of the image (i.e. its resolution) and locate the ‘pixel’ that is x% and y% along each axis.
3. The image is an array object with red, green and blue ‘channels’, so we can retrieve each one for our pixel and convert to a hex value.

Of course, I welcome your thoughts on how to improve the function. But yeah, y’know, just use {eyedroppeR}.

Dry your eyes, mate

I’m a big believer in sharing failure. I’m a big believer in recognising when to stop². Regardless of ‘success’, I’m also a big believer in sharing your ideas and documenting your thought processes.

I’m also a big believer in having a nice time and coding for fun.

Environment

Session info

Last rendered: 2024-01-13 10:03:39 GMT

R version 4.3.1 (2023-06-16)
Platform: aarch64-apple-darwin20 (64-bit)
Running under: macOS Ventura 13.2.1

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.11.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: Europe/London
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

loaded via a namespace (and not attached):
 [1] htmlwidgets_1.6.2 compiler_4.3.1    fastmap_1.1.1     cli_3.6.2
 [5] tools_4.3.1       htmltools_0.5.6.1 rstudioapi_0.15.0 yaml_2.3.8
 [9] rmarkdown_2.25    knitr_1.45        jsonlite_1.8.7    xfun_0.41
[13] digest_0.6.33     rlang_1.1.3       fontawesome_0.5.2 evaluate_0.23

Footnotes

1. I used locator() for the {pixeltrix} ‘pixel-art editor’ package and in a previous post about getting coordinates from fictitious maps.

2. I’ve definitely created things in the past that I didn’t realise already existed, such as my {badgr} package and the pre-existing {badger} package.
